Windows 10 Upgrade Splash Screen – Take 2

Recently I tweeted a picture of the custom Windows 10-style splash screen I’m using in an implementation of Windows as a Service with SCCM (aka in-place upgrade), and a couple of people asked for the code, so here it is!

A while ago a blogged about a custom splash screen I created to use during the Windows 10 upgrade process. Since then, I’ve seen some modifications of it out there, including that of Gary Blok, where he added the Windows Setup percent complete which I quite liked. So I made a few changes to the original code as follows:

  • Added a progress bar and percentage for the Windows Setup percent complete
  • Added a timer so the user knows how long the upgrade has been running
  • Prevent the monitors from going to sleep while the splash screen is displayed
  • Added a simple way to close the splash screen in a failure scenario by setting a task sequence variable
  • Re-wrote the WPF part into XAML code

Another change is that I call the script with ServiceUI.exe from the MDT toolkit instead of via the Invoke-PSScriptasUser.ps1 as this version needs to read task sequence variables so must run in the same context as the task sequence.

I haven’t added things like looping the text, or adding TS step names as I prefer not to do that, but check out Gary’s blog if you want to know how.

To use this version, download the files from my Github repo. Make sure you download the v2 edition. Grab the ServiceUI.exe from an MDT installation and add it at top-level (use the x64 version of ServiceUI.exe if you are deploying 64-bit OS). Package these files in a package in SCCM – no program needed.

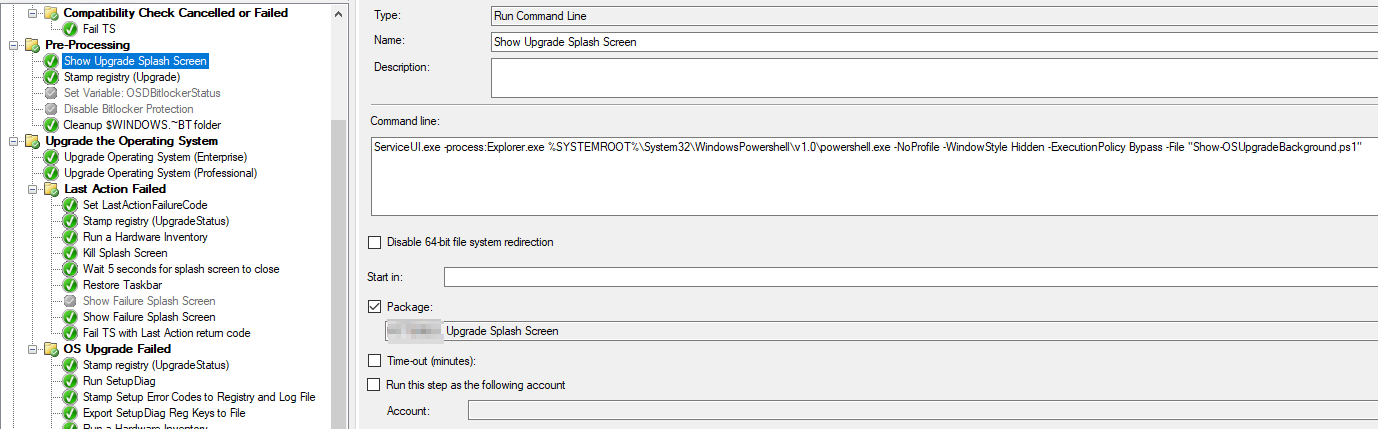

To call the splash screen, add a Run Command Line step to your upgrade task sequence and call the main script via Service UI, referencing the package:

ServiceUI.exe -process:Explorer.exe %SYSTEMROOT%\System32\WindowsPowershell\v1.0\powershell.exe -NoProfile -WindowStyle Hidden -ExecutionPolicy Bypass -File "Show-OSUpgradeBackground.ps1"

To close the screen in a failure scenario, I add 3 steps as follows:

The first step kills the splash screen simply by setting the task sequence variable QuitSplashing to True. The splash screen code will check for this variable and initiate closure of the window when set to True.

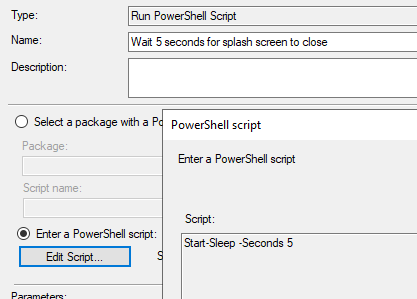

The second step just runs a PowerShell script to wait 5 seconds for the splash screen to close

The last step restores the taskbar to the screen

For that step, run the following PowerShell code:

# Thanks to
$Source = @"
using System;
using System.Runtime.InteropServices;

public class Taskbar
    private static extern int FindWindow(string className, string windowText);
    private static extern int ShowWindow(int hwnd, int command);

    private const int SW_HIDE = 0;
    private const int SW_SHOW = 1;

    protected static int Handle
            return FindWindow("Shell_TrayWnd", "");

    private Taskbar()
        // hide ctor

    public static void Show()
        ShowWindow(Handle, SW_SHOW);

    public static void Hide()
        ShowWindow(Handle, SW_HIDE);
Add-Type -ReferencedAssemblies 'System', 'System.Runtime.InteropServices' -TypeDefinition $Source -Language CSharp

# Restore the taskbar
