Report on Overlapping Boundaries in MEMCM

Having boundaries that overlap with other boundaries can be a royal pain in MEMCM if those boundaries are in different locations – unless identified and sorted out you can potentially have clients getting content from undesired sources – across the continent or even across the world in some cases!

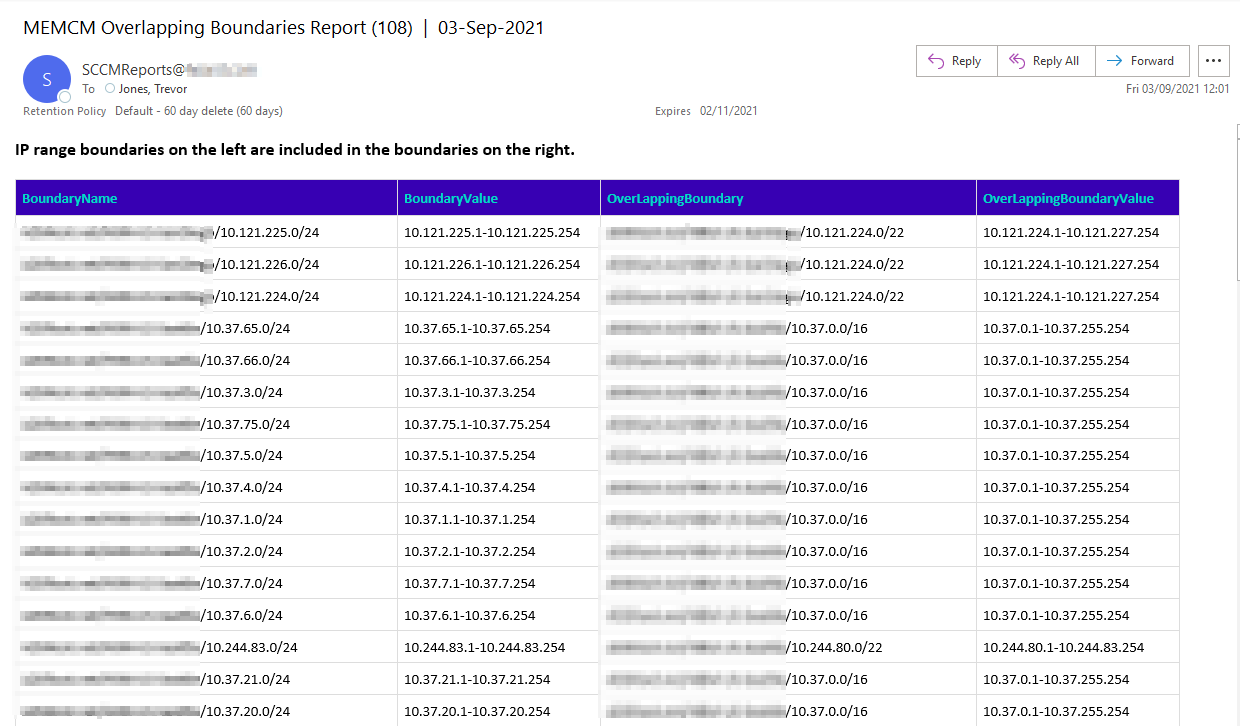

I prepared the following script that could be run as a scheduled task to send an email report on any IP range boundaries that overlap with other boundaries. The boundaries on the left side of the table have IP ranges that are covered by (included in) the boundaries on the right side.

The account that runs the script will need read access to the MEMCM database and the permission to relay mail in Exchange online.

# MEMCM database params
$script:dataSource = 'myMEMCMSQLserver' # MEMCM SQL server name, include instance if needed
$script:database = 'CM_ABC' # MEMCM database name
# Html CSS style
$Style = @"
table {
border-collapse: collapse;
font-family: sans-serif
font-size: 10px
td, th {
border: 1px solid #ddd;
padding: 6px;
th {
padding-top: 8px;
padding-bottom: 8px;
text-align: left;
background-color: #3700B3;
color: #03DAC6
# Function to get data from SQL server
function Get-SQLData {
$connectionString = "Server=$dataSource;Database=$database;Integrated Security=SSPI;"
$connection = New-Object TypeName System.Data.SqlClient.SqlConnection
$connection.ConnectionString = $connectionString
$command = $connection.CreateCommand()
$command.CommandText = $Query
$reader = $command.ExecuteReader()
$table = New-Object TypeName 'System.Data.DataTable'
# Close the connection
return $Table
# SQL query
$Query = "
Select * from dbo.BoundaryEx
Where BoundaryType = 3
and (NumericValueLow is not null
or NumericValueHigh is not null)
# Get SQL data
$Results = Get-SQLData Query $Query
# Custom class
class OverLappedBoundary
# Find the overlapping boundaries
$OverLappingBoundaries = @()
foreach ($Result in $Results)
foreach($Boundary in $Results)
If ($Result.BoundaryID -ne $Boundary.BoundaryID -and (($Result.NumericValueLow -gt $Boundary.NumericValueLow -and $Result.NumericValueLow -lt $Boundary.NumericValueHigh) -or ($Result.NumericValueHigh -lt $Boundary.NumericValueHigh -and $Result.NumericValueHigh -gt $Boundary.NumericValueLow)))
$OverLappedBoundary = [OverLappedBoundary]::new()
$OverLappedBoundary.BoundaryName = $Result.Name
$OverLappedBoundary.OverLappingBoundary = $Boundary.Name
$OverLappedBoundary.BoundaryValue = $Result.Value
$OverLappedBoundary.OverLappingBoundaryValue = $Boundary.Value
$OverLappingBoundaries += $OverLappedBoundary
If ($OverLappingBoundaries.Count -ge 1)
# Email params
$EmailParams = @{
To = ''
From = ''
Smtpserver = ''
Port = 25
Subject = "MEMCM Overlapping Boundaries Report ($($OverLappingBoundaries.Count)) | $(Get-Date Format ddMMMyyyy)"
# Prepare the HTML
$Precontent = "<h3>IP range boundaries on the left are included in the boundaries on the right.</h3>"
$HTML = $OverLappingBoundaries|
ConvertTo-Html Head $Style PreContent $Precontent |
# Send email
Send-MailMessage @EmailParams Body $html BodyAsHtml
